微小型地面侦察机器人

        微小型地面侦察机器人利用自身体积小、隐蔽性好的特点在反恐侦察、长期潜伏中具有重要作用。在侦察探测过程中，操作人员可以将机器人投向待侦察地域，通过遥控的方式调整机器人的位置及姿态，机器人通过无线视频将现场情况发送到远程操作端，达到远程侦察及长期潜伏的目的。

        To use its small size, good features hidden in anti-terrorism surveillance,micro ground reconnaissance robot take an important role in the long-term hiding.In the reconnaissance exploration process, the operator can send the robot to the region to be detected.The operator can adjust the robot's position and posture by remote control. Robot send the situation on the groud to remote operation end via wireless video, to achieve long-range reconnaissance and long-term hiding purposes.

        一、产品特点

        （1）、运动效率高、能量损耗小

        They has the advantages of high movement efficiency, low energy loss.

        （2）、目标小不易被发现、远程遥控机动灵活、便于携带操控

        Small size hard to be detected, remote control flexible and easy to be carried and operated

        （3）、BALL-130是可移动侦察装备，可以防震，抵抗各种不利环境因素

        BALL-130 is a portable surveillance equipment,shockproof,resistance to adverse environmental factors.

        （4）、BALL-130可以滚动移动以调整自身侦察位置，使自身存在于更加隐蔽的环境中    BALL-130 can be moved to adjust the scroll position of its own reconnaissance, so that self-exists in the more subtle environment

        （5）、BALL-130可以零半径自转，实现360度环境侦察

        BALL-130 can do a zero radius of rotation, to achieve 360-degree environment reconnaissance

        （6）、独特的远距离监视设备，使用可靠It is a unique remote monitoring equipment, reliable

        （7）、手持式远程控制器，操作简便，可远程实时监测机器人工作状态信息及图像信息

        Hand-held remote controller, easy to operate, could do the work of remote real-time monitoring of robot status information and image information.

        二、主要参数The main parameters:

        （1）、直径：130毫米；Diameter: 130 mm;

        （2）、自重：1.5千克；Weight: 1.5 kg;

        （3）、速度：移动速度0.1米/秒；Speed: speed 0.1 m / s;

        （4）、续航时间：30分钟；Endurance time: 30 minutes;

        （5）、潜伏时间：24小时；Incubation time: 24 hours;

        （6）、无线传输距离：75米；Wireless transmission distance: 75 meters;

        三、功能 Function

        （1）、远程反恐侦察、长期潜伏；Remote counter-terrorist and long-term hiding

        （2）、适合应用于危险环境的探测、狭小复杂环境和管道内部等的监视、士兵作战远程侦察等方面；They are very suitable for hazardous environment detection,and reconnaissance in narrow channels within the complex environment and internal pipeline,and soldiers in combat long-range reconnaissance, etc.

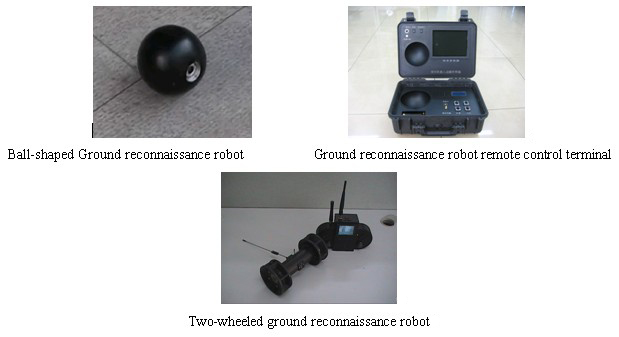

        四、类别及样机照片Prototype photo and description:

        目前已研制球型、椭球型、双轮三种地面侦察机器人Now we have developed spherical, ellipsoid, two-wheeled three kinds of ground reconnaissance robot
