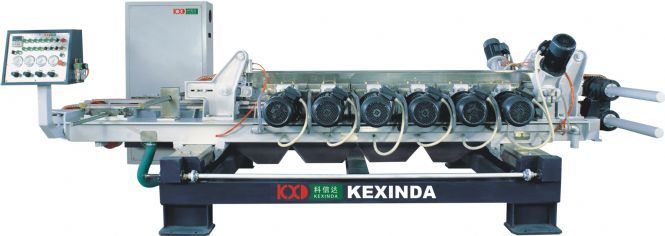

MBS系列压带磨边倒角机

                                    MBS SERIES PRESSING BELT TYPE SQUARING AND CHAMFERING MACHINE
MBS系列压带式磨边倒角机，适用于陶瓷釉面砖、抛光砖的磨边和倒角加工，有效消除砖坯的“大小头”、“波浪边”、微量崩边等缺陷，提高瓷砖产品附加值。尤其适用于对内墙砖进行精细磨边加工，对角线误差可控制在0.3mm以内。
MBS系列压带式磨边倒角机利用上压带和输送带之间的压紧力确保砖坯输送平稳，磨削加工精度高、产量大。本机具有整机性能优越、整机操作方便、故障率低等特点。
MBS series pressing belt type squaring and chamfering machine is fit for squaring and chamfering the ceramic glazed and polishing tiles, could improve the additional value of ceramic tiles product and effectively remove the defects of “Deviation between two paralleled sides”, “wave sides” and tiny cracked sides, especially suit for fine squaring the inner wall tiles, and the “Diagonal tolerance” could be controlled within 0.3mm.
MBS series pressing belt type squaring and chamfering machine could adopt the pressing power between the upper pressing belts and conveyor belts to maintain the green tiles stably and even pressure during transported and cut, high squaring quality and large capacity. The machine also has the advantage of good performance, easy operation and low failure rate.

特点
◆ 矩形方管大梁保持整机稳定性；
◆ 直角校正装置（本公司专利技术）修正瓷砖角度，控制对角线误差；
◆ 磨头总成结构合理，制作精密，使用性能好，故障率低；
◆ 整体式水罩提高防水性能；
◆ 新型压带装置，集压轮式与压带式优点于一身，有效防止瓷砖走偏。
Characteristics
◆ Rectangle square tube maintains the machine stability.
◆ Right angle adjusting device (Patent technology) amends tiles’ angle, controls the Diagonal tolerance.
◆ Squaring head assembly reasonable structure, precise manufacture, good using, low failure rate.
◆ Integral type water cover improves the waterproof performance.
◆ New-type pressing belt device, with the advantage of pressing wheels and belts, which could avoid the tile side tracked.

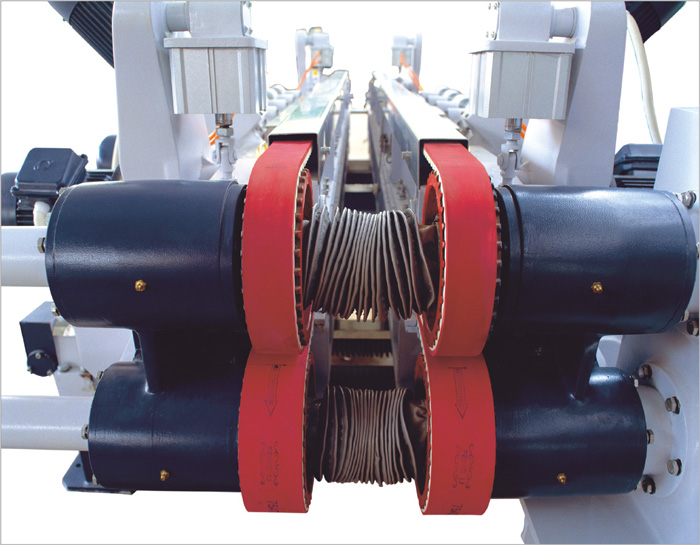

MBS压带磨边倒角机-细节图
